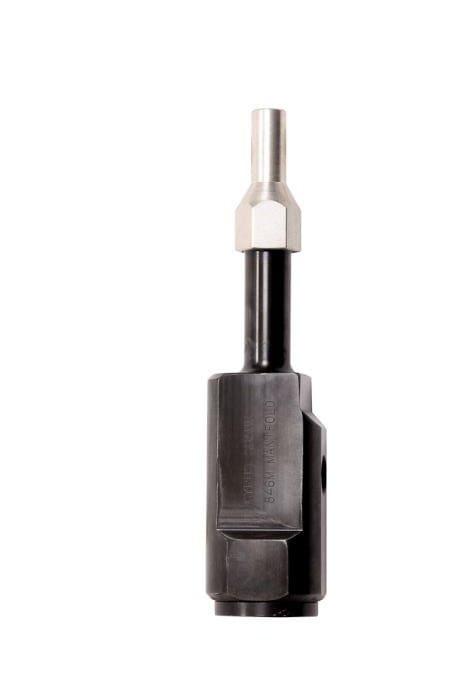

Description
| 846M manifold can be used with the following relief valves |
|---|
| #800, 800D, 800SS series ½” x ¾” (lowest capacity – oil pots) |
| #800QR ½” MNPT inlet x ¾” FNPT outlet (lowest capacity— quick release valve) |
| #801, 801D, 801SS series ½” x ¾” (low capacity – small vessels) |
| #801DHC ½” FNPT inlet x ¾” FNPT outlet (high capacity) |
| #803 ½” FNPT x ¾” FNPT (standard ) |
| #803QC ½” FNPT inlet x ¾” FNPT outlet (standard — quick connect valve) |
| #812 ½” FNPT x 1” FNPT (medium capacity) |
| #813 ½” FNPT x 1” FNPT (for ASHRAE piping tables) |
| #CS5602A ½” FNPT x ¾” FNPT (high capacity) |
| #CS5602B ½” FNPT x 1” FNPT (high capacity) |
846M Port Sizes: ½” x ½” x ½” FNPT
